Air Plug Gauge
Used to measure internal diameters of holes with very high accuracy using air flow measurement.
- Range
- 2 mm to 200 mm
- Types
- As per Requirement
- Tolerance
- H6, H7, H8, H9, H10 — as per ISO / DIN standards
Air Plug Gauge
High-Precision Air Flow Measurement
Air Gauges
High-precision measuring instruments using compressed air to check internal or external dimensions with extremely accurate and repeatable measurements — ideal for high-precision inspection in manufacturing and quality control.
Overview
About Air Gauges
Air Gauges are high-precision measuring instruments used to check internal or external dimensions using compressed air. They provide extremely accurate and repeatable measurements, making them ideal for high-precision inspection in manufacturing and quality control.
Air Gauges are widely used in automotive, aerospace, precision engineering, and machine tool industries for fast and reliable dimensional measurement.
At Size Gauge, we manufacture precision Air Gauges and Air Plug Gauges designed for high-accuracy measurement and consistent performance in industrial inspection applications.
Technical Specifications
- Material
- High Grade Tool Steel / Carbide
- Hardness
- 58 – 62 HRC
- Measurement Method
- Air Flow Measurement
- Standards
- ISO / DIN / ANSI / IS
- Accuracy
- High precision, excellent repeatability
- Calibration
- Certificate available on request
- Range
- 2 mm to 200 mm (standard)
Need a Custom Air?
We manufacture special gauges as per your drawings and specifications.
Contact Our TeamProduct Range
Types of Air Gauges We Manufacture
Air Ring Gauge
Used to check external diameters of shafts and cylindrical components using air gauging systems.
- Range
- 3 mm to 200 mm
- Types
- As per Requirement
- Tolerance
- h6, h7, h8, h9 — as per ISO standards
Air Ring Gauge

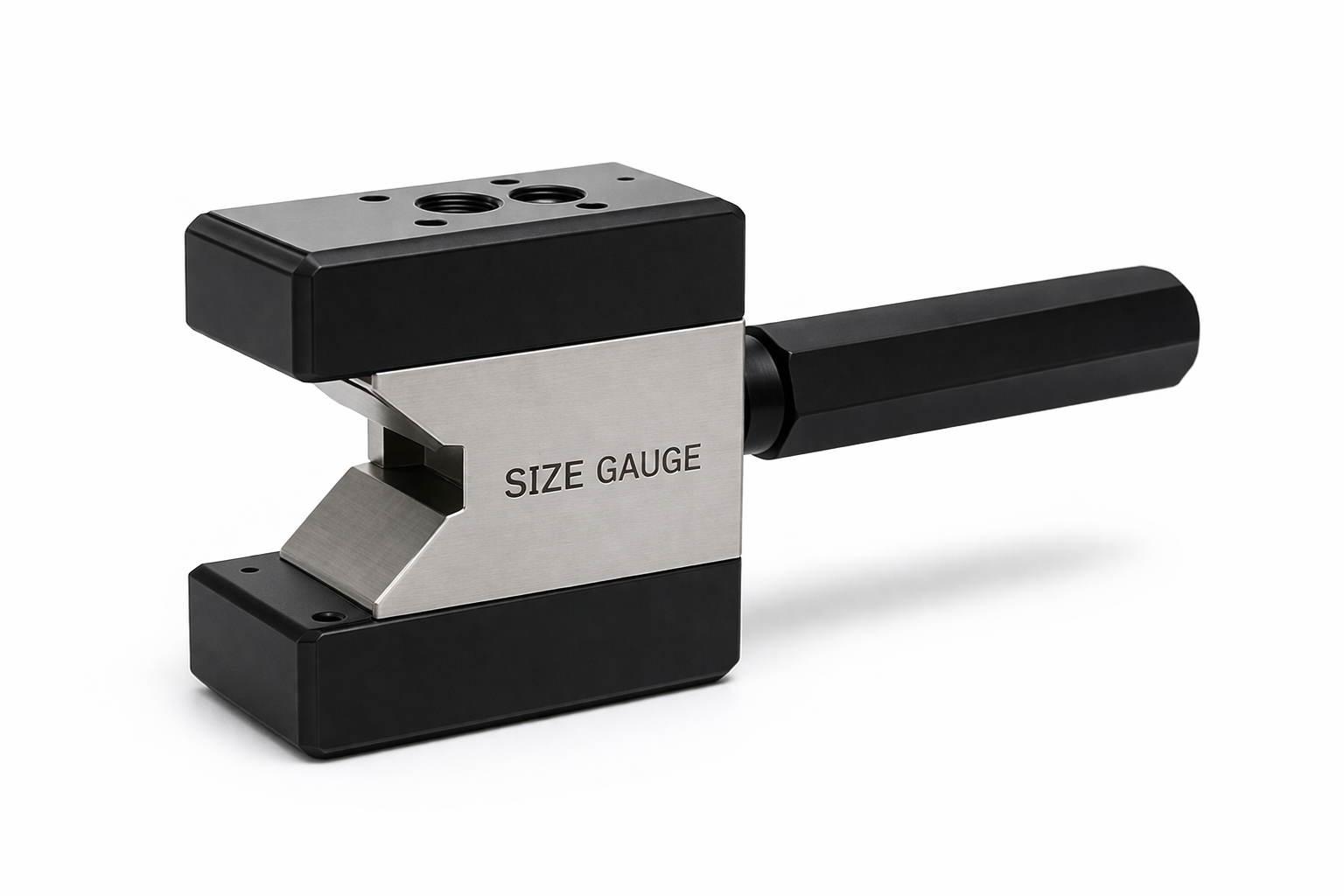

Air Snap Gauge
Designed for fast measurement of external diameters in high-volume production environments.
- Range
- 5 mm to 200 mm
- Types
- As per Requirement
- Tolerance
- H7, H8, H9 — or as per requirement
Air Snap Gauge

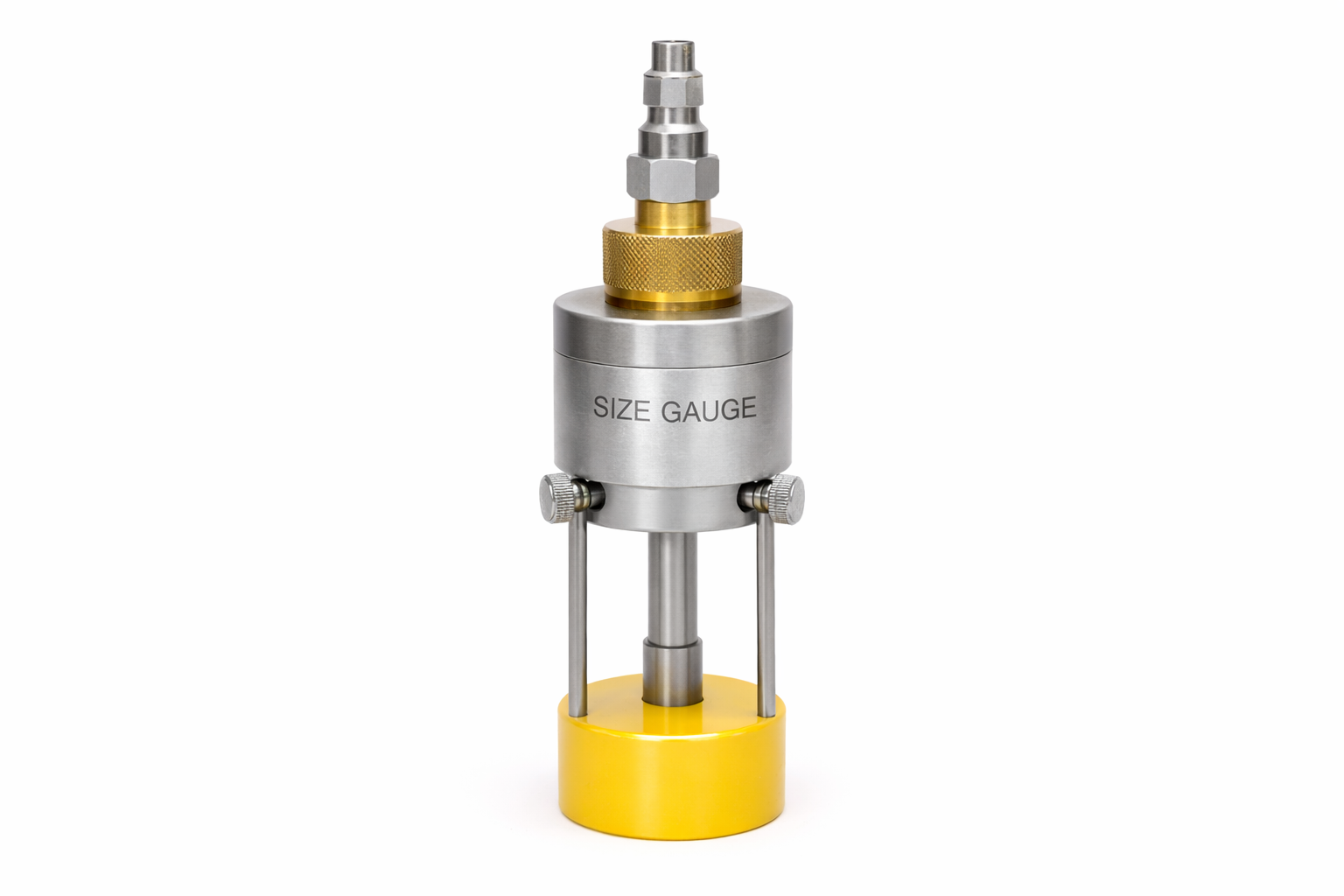

Special Air Gauge
Custom-designed for specific inspection applications based on customer drawings or measurement requirements.
- Range
- As per drawing
- Types
- As per Requirement
- Tolerance
- As per customer specification
Special Air Gauge
Additional Information
Industries
Industries We Serve
- Automotive Manufacturing
- Aerospace Industry
- Precision Engineering
- Machine Tool Industry
- Fastener Manufacturing
- Oil & Gas Industry
- General Engineering
- Defence Industry
Why Us
Why Choose Size Gauge
- High precision and repeatable measurement results
- Manufactured using advanced precision technology
- Durable and wear-resistant construction
- Custom air gauges manufactured as per drawings
- Strict quality inspection before dispatch
- Competitive pricing and reliable delivery
Size Gauge is a trusted Air Gauge Manufacturer in India, specialising in precision Air Plug Gauges, Air Ring Gauges, and Air Snap Gauges for industrial inspection. Our air gauging solutions are widely used in automotive, aerospace, machine tool, and precision engineering industries for accurate dimensional measurement and quality control.
