Precision gauges used to check the diameter and tolerance of holes in machined components using the Go / No-Go principle, ensuring quick and reliable verification of internal dimensions.
Plug Gauges are precision gauges used to check the diameter and tolerance of holes in machined components. They operate on the Go / No-Go principle, allowing quick and reliable verification of internal dimensions. Plug gauges are widely used in manufacturing, automotive, aerospace, and engineering industries to ensure product quality and dimensional accuracy.
At Size Gauge, we manufacture high-precision plug gauges using high-grade tool steel and advanced manufacturing processes to ensure durability, accuracy, and long service life. Every gauge is manufactured under our ISO 9001:2015 quality management system and laser marked with size and tolerance for easy identification.
We manufacture special gauges as per your drawings and specifications.
Contact Our TeamUsed to check plain hole sizes using the Go and No-Go principle to ensure the hole is within specified tolerance limits.
Plain Plug Gauge

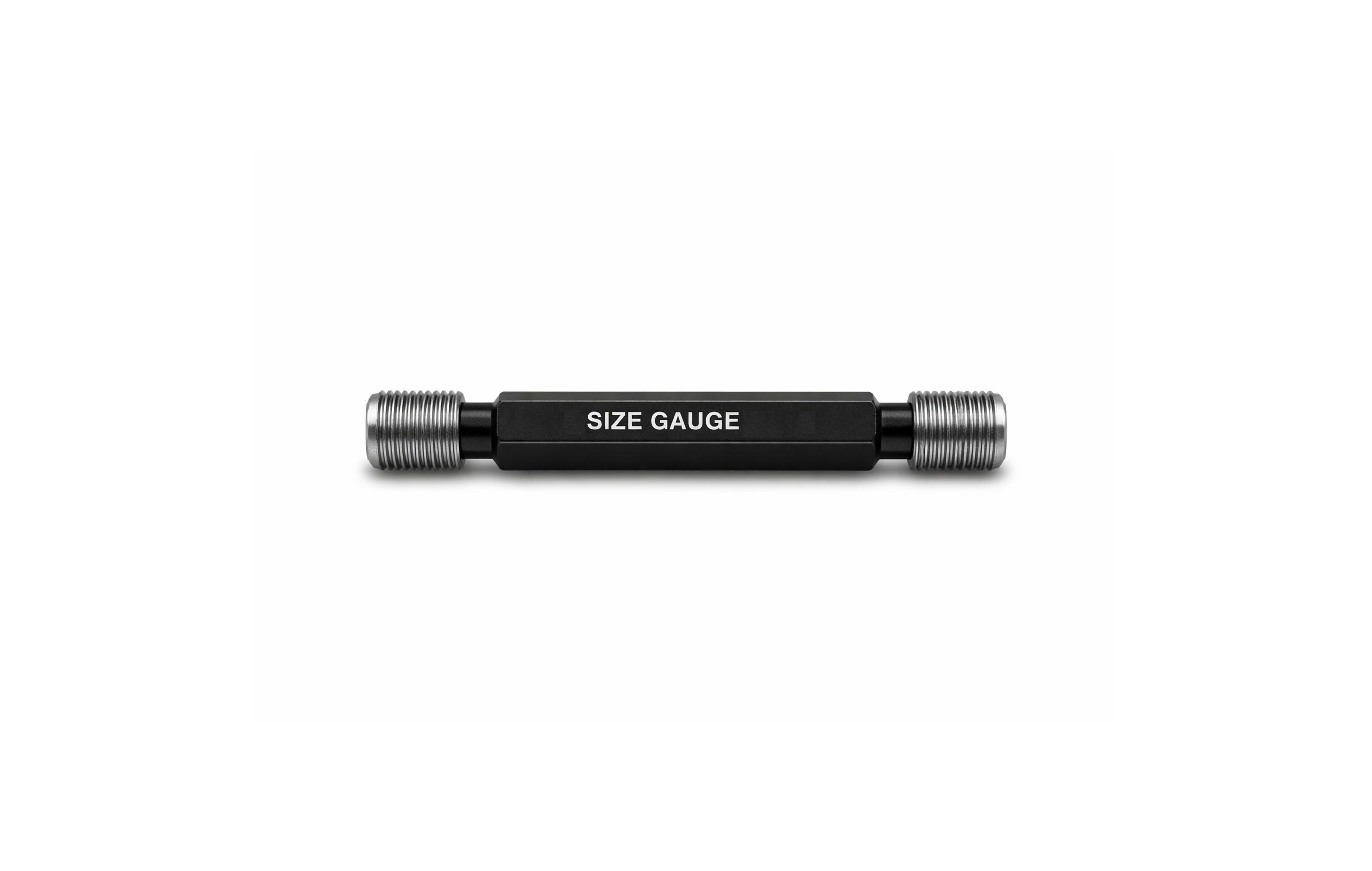

Used to inspect internal threads and verify thread size, pitch, and tolerance accuracy. Suitable for various industrial thread standards.
Thread Plug Gauge

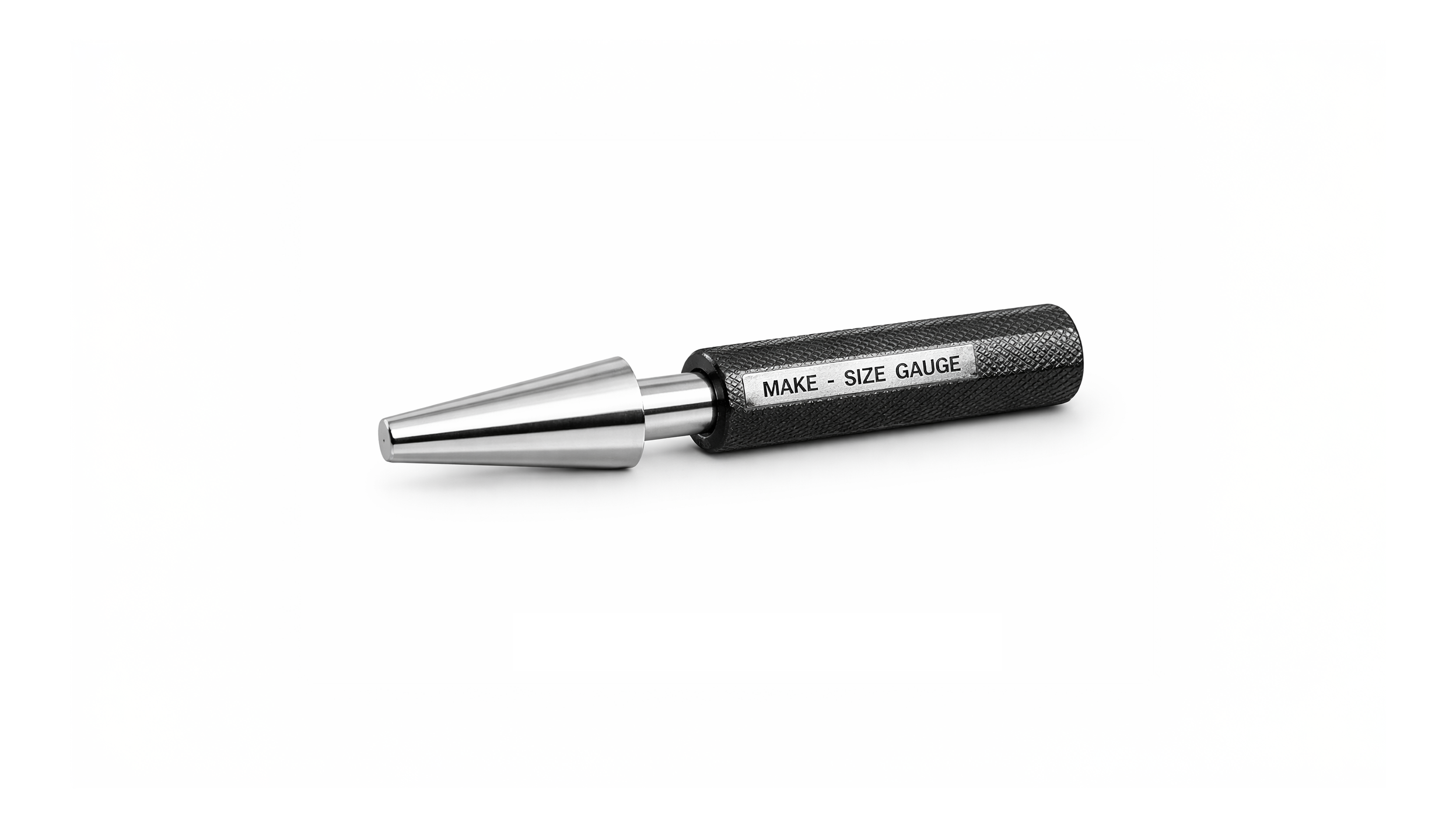

Used to measure tapered holes and verify the correct taper angle and diameter for proper component fitting.
Plain Taper Plug Gauge

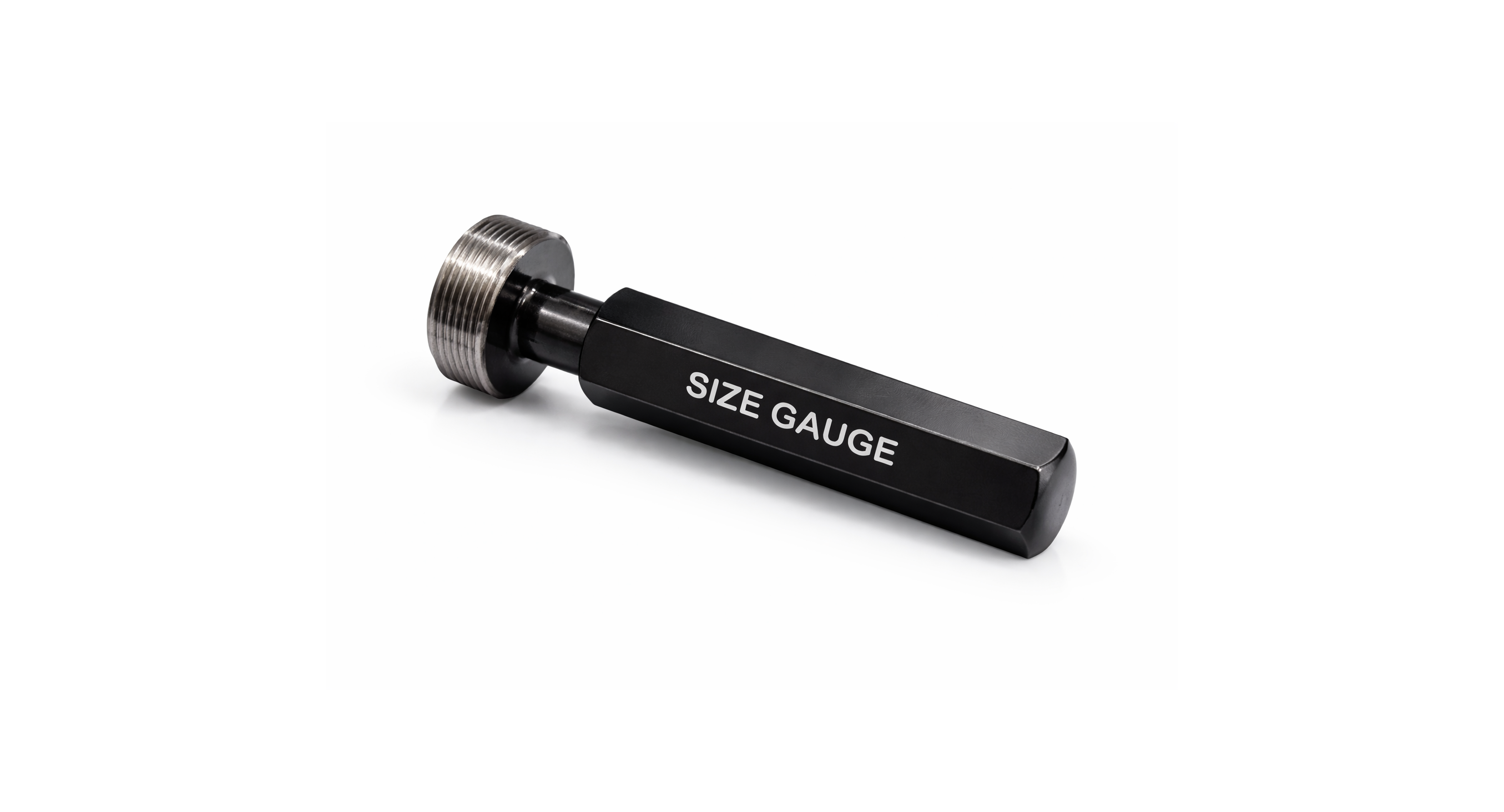

High-precision gauges used as reference standards for calibration and setting of other measuring instruments.
Wear Check Plug Gauge

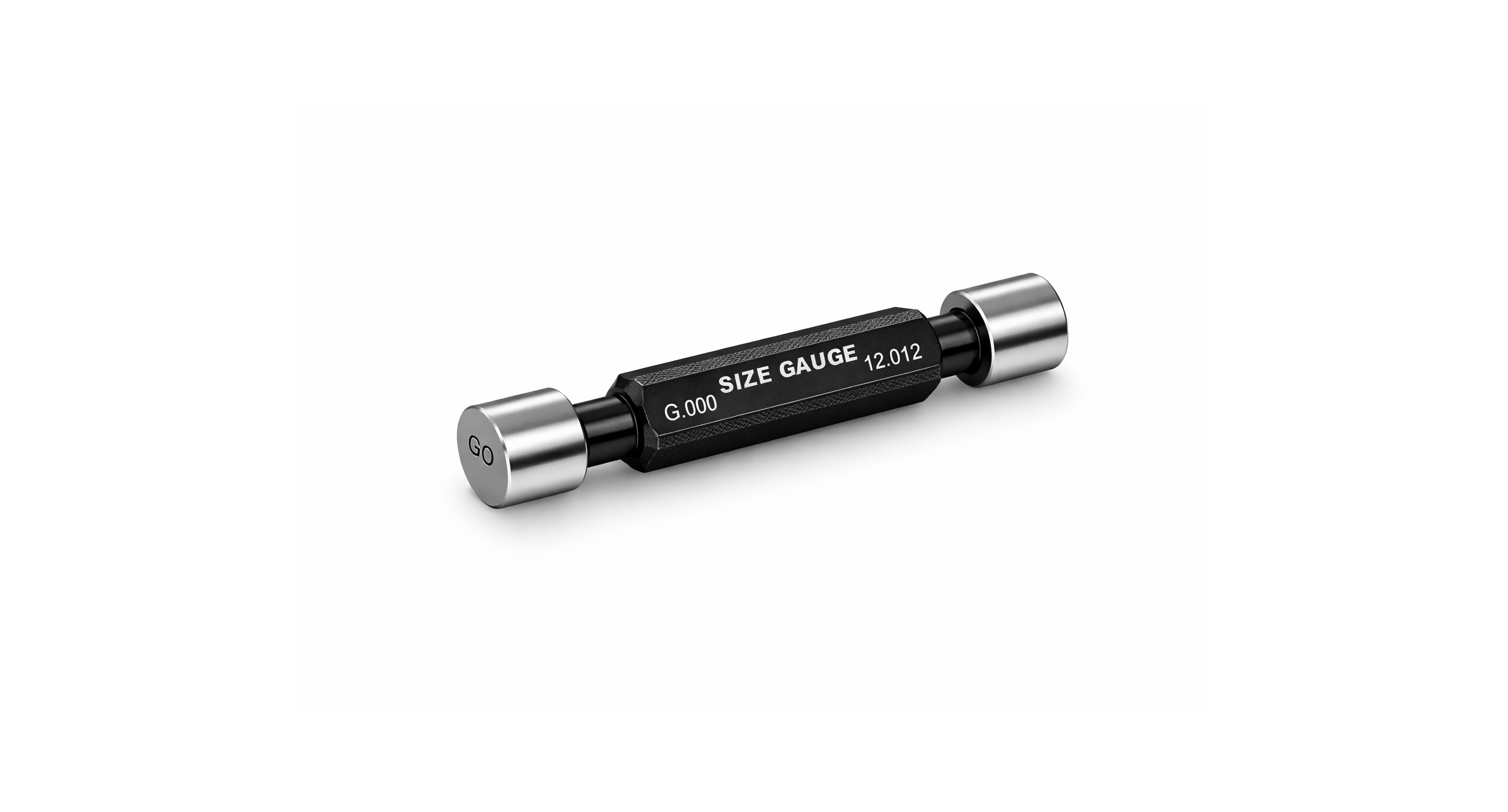

Manufactured with tungsten carbide tips for enhanced wear resistance and longer operational life.
Carbide Plug Gauge
Used with air gauging systems to measure internal diameters with extremely high precision and repeatability.
Air Plug Gauge
Custom-designed gauges manufactured according to specific customer drawings or applications.
Special Plug Gauge

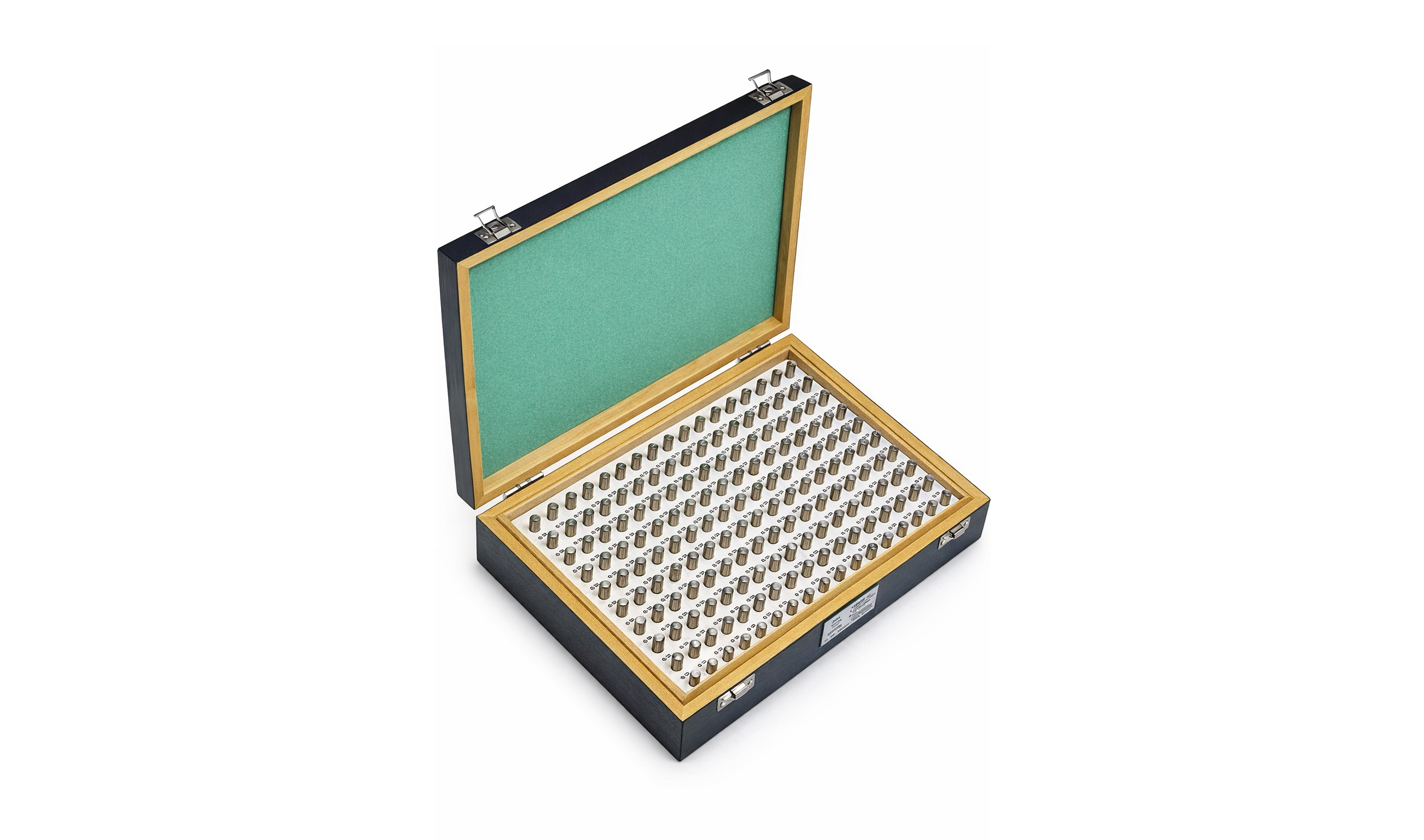

Used to check small hole sizes, slot widths, and bore diameters using individual precision pins. It works on the Go / No-Go principle (using plus and minus pins) to ensure the hole is within specified tolerance limits.
Pin Gauge Set
Size Gauge manufactures high-precision Plain Plug Gauges, Thread Plug Gauges, Taper Plug Gauges, and Special Gauges in a wide range of sizes, thread standards, and tolerance grades as per ISO, DIN, ANSI, and customer requirements. Contact us for a quote or to discuss your specific gauging requirements.
